3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms

JIMA Copper
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms

  • 1
  • 2

Brand Name : JIMA

Model Number : CU0035

Certification : SGS,ROHS

Place of Origin : China

MOQ : 50kg

Price : 15 usd per kg

Supply Ability : 500 ton per month

Delivery Time : 30 days

Packaging Details : wooden box

Cu (Min) : 99.90%

Application : Faraday Cage,RF MRI shieding / RFI/EMI chembers,builds MRI rooms ,RF shielded rooms

item : 0.1mm thick Copper Foil width 1320mm For RF MRI Shielding

Sample : Trial sample 100kgs; A4 sample free

width sheet : max.1400mm

supply : RF Copper Foil,0.1mm thick Copper Foil ,MRI Copper Foil, 0.14mm Copper Foil

Material : CU ETP, C1100,CU-ETP,T2, CW004A

inner Package : vacuum packaging

ID : 500mm 152mm 76mm 300mm

Temper : Hard, Half Hard ,SOFT,R220,Annealed

Contact Now

3OZ and 0.10mm thickness Copper foil 1400mm width make used for builds MRI rooms


Copper ETP foill More Detail

1. Material : Cu-ETP (110) ,Cu-ETP(110),C11000,C1100 CU-ETP,T2,CW004A

2. Temper : Hard or Half Hard ; SOFT(R220)/Annealed ; 1/2-hard (R240 ); Hard

3. Core ID: 76MM,152MM 500ML

4. Max. roll weight : 1500kgs/roll

5. Max. width can supply 1400mm

5, Trial sample min.quantity :100kgs

6. Use more width : 914mm,1000mm, 1250mm,1320mm ,1400mm,1320mm

7. Inner package : vacuum packaging

8. Sample: A4 sample free

Cu-ETP (110) Typical Application :

1. For faradays cages
2. For RF MRI shieding / RFI/EMI chembers/builds MRI rooms (RF shielded rooms)

MRI Copper Foil Specification

Thick Copper Plate
Grade/MaterialThicknessWidthLengthTemper
T2( CU-ETP,C1100,CW004A);T3(C1221)≥3.5-8400-620≤1800Annealed(R220);1/2-hard (R240 );Hard
>8-15≤1500
Width Copper Sheet
Grade/MaterialThicknessWidthLengthTemper
T2( CU-ETP,C1100,CW004A);T3(C1221)≥0.5-3.5600-1400500-3200Annealed(R220);1/2-hard (R240 ); Hard
Width Copper Strip
Grade/MaterialThicknessWidthLengthTemper
T2( CU-ETP,C1100,CW004A);T3(C1221)≥0.3-0.5300-1400CAnnealed(R220);1/2-hard (R240);Hard
>0.5-3.5Annealed(R220);1/2-hard (R240) ;1/4-hard;Hard
Thin Copper Strip
Grade/MaterialThicknessWidthLengthTemper
T2( CU-ETP,C1100,CW004A);T3(C1221)≥0.05-0.430-300CAnnealed(R220);Hard
>0.4-2.0100-300Annealed(R220);1/2-hard (R240) ;Hard

Cu-ETP(110) Width Copper Foil Photos:

0.28mm Copper Foil Package Photos:

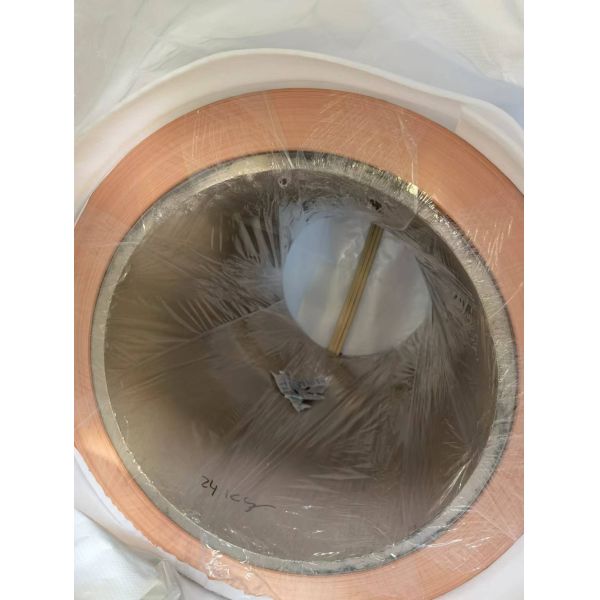

Inner Package :vacuum packaging

C11000 Copper Stadnard Export Wooden Box Package:

Core ID : 500MM Drawing :
