99.95% High Purity Lithium Ion Battery Copper Foil 9 Mic with None Pinholes

JIMA Copper
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

99.95% High Purity Lithium Ion Battery Copper Foil 9 Mic with None Pinholes

  • 1
  • 2

Brand Name : JIMA

Model Number : EDCU-HC

Certification : SGS, ISO,Reach, RoHS

Place of Origin : china

MOQ : 100kg

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 1000 Ton per month

Delivery Time : 5-15 days

Packaging Details : wooden carton

Purity : 99.95%

Pinholes : None

Anti oxidation : 180 degree 60 minutes, 180 days 23 degree

Thickness : 9 mic

Color : Red

Name : 99.95% High Purity Lithium Ion Battery Copper Foil 9 Mic with None Pinholes

Contact Now

Double Shiny 9 Mic Electrolytic Copper Foil for Lithium Battery XEV Hybrid-electric Vehicle (HEV)

Specifications:

  • Double shiny treatment in red.
  • Thickness: 0.009mm
  • Width: 1380 mm
  • Length: 500-5000 M
  • ID: 76 mm,152 mm

Li Ion Battery Anode Current Collector, Electrolytic Rolled Copper Foil

  1. Types: Double-shiny, Double-matte, One side shiny
  2. TThickness: 8micro, 9micro, 10micro,12micro, 15micro

Application:

  1. Lib: notebook PC, mobile phone.
  2. Electric vehicle(EV)

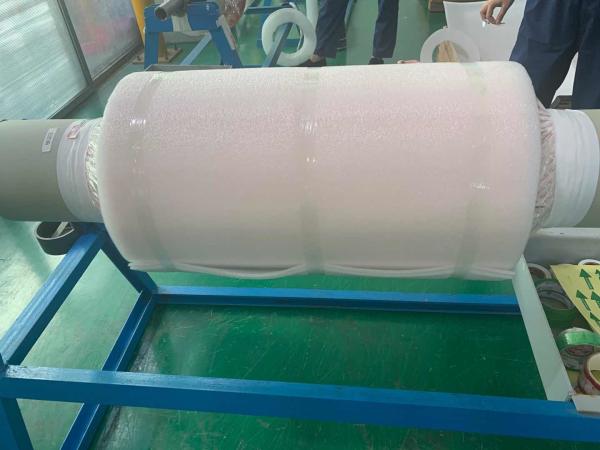

Package:Wooden box

99.95% High Purity Lithium Ion Battery Copper Foil 9 Mic with None Pinholes

99.95% High Purity Lithium Ion Battery Copper Foil 9 Mic with None Pinholes

FAQ:

Q1. Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q3. What is your standard width?

A: 1380 and 1290mm

Typical Properties of Electrolytic ED Copper Foil Lithium Battery

Classification Unit Requirement Test Method
Foil Designation / IPC-4562A
Nominal thickness / 6um 7um 8um 9/10um 12um 15um 20um IPC-4562A
Area Weight g/㎡ 54±1 63±1.25 72±1.5 89±1.8 107±2.2 133±2.8 178±3.6

IPC-TM-650

2.2.12.2

Purity ≥99.9

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) um 0.1-0.4

IPC-TM-650

2.3.17

Matte side(Rz) um 0.8-2.0
Tensile Strength R.T.(23℃) Mpa >280

IPC-TM-650

2.3.18

H.T.(180℃) >200
Elongation R.T.(23℃) >5

IPC-TM-650

2.3.18

H.T.(180℃) >3
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 90 /
H.T.(160℃) Minutes 15 /

Max Width,1295(±1)mm,May according to the customer request tailor.
